Seat Forward/Back Adjustment Handle, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Bring the front seat all the way to the rear and then into its highest position.

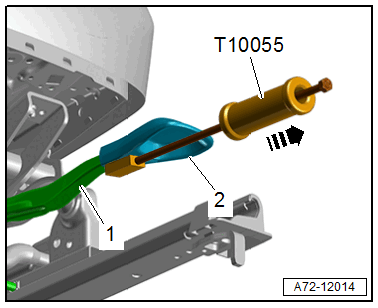

-- Place the Puller - Unit Injector:T10055 on the handle -2- and remove the handle from the operating lever -1- -arrow-.

Courtesy of AUDI
