Overview - Seat Pan, Fire Extinguisher

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

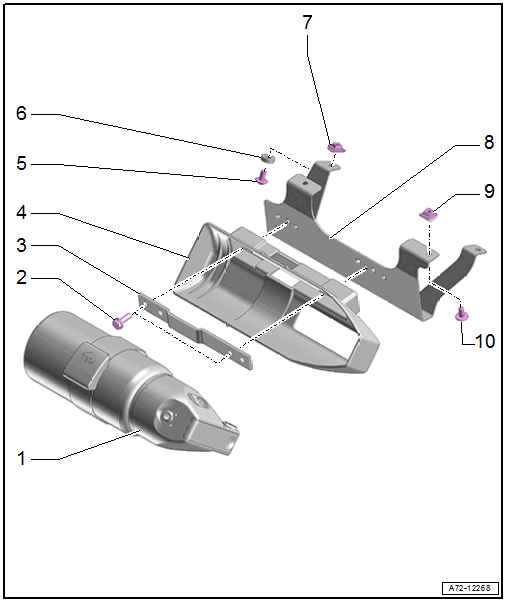

GWWA72-12268Courtesy of AUDI
  1. Fire Extinguisher
  2. Bolt
    • Quantity: 2
    • 7.5 Nm
  3. Retaining Plate
  4. Fire Extinguisher Mount
  5. Bolt
    • Quantity: 2
    • 7.5 Nm
  6. Washer
  7. Spring Nut
    • Quantity: 2
    • Attached in the seat pan
    • Replace any damaged or deformed spring nuts
  8. Bracket
  9. Spring Nut
    • Quantity: 2
    • Attached in the seat pan
    • Replace any damaged or deformed spring nuts
  10. Bolt
    • Quantity: 2
    • 7.5 Nm
