Headrest Guide, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the backrest seat cover and cushion. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .

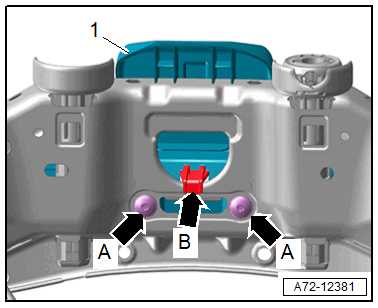

-- Remove the bolts -A arrows-.
-- Disengage the tab -arrow B- and remove the cover -1-.
-- Press the tabs down at the same time -arrows-.
-- Remove the headrest guide -1- upward.
