Driver Seat Switch Module -E663- /Front Passenger Seat Switch Module -E664-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- If installed, carefully unclip the rocker -1- from the switch module using the Trim Removal Wedge:3409 .
-- Remove the seat side trim on the side sill side. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING .

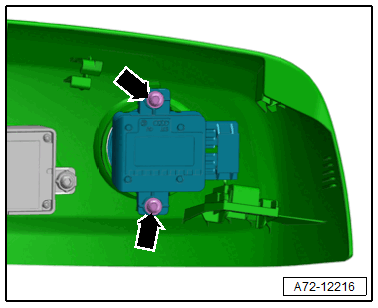

-- Remove the bolts -arrows- and remove the switch module.
