Driver Seat Adjustment Control Head -E470- /Front Passenger Seat Adjustment Control Head -E471-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

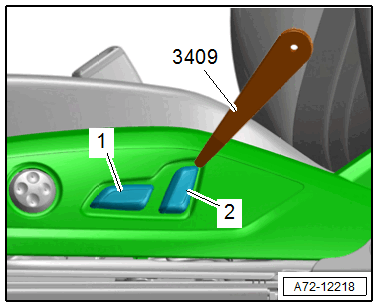

-- Carefully pry the actuators -1- and -2- out of the retainer using the Trim Removal Wedge:3409 .
-- Remove the seat side trim on the side sill side. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING .

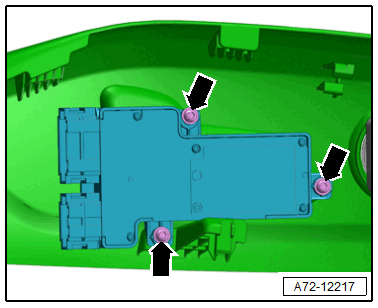

-- Remove the bolts -arrows-.
-- Remove the control head from the seat side trim on the side sill side.
