Backrest Fan, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- The backrest cover is removed. Refer to BACKREST COVER, REMOVING AND INSTALLING .

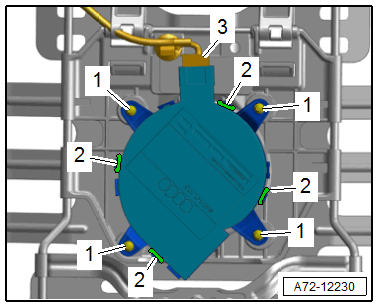

-- Disconnect the connector -3-.
-- Disengage the tabs -2- on the backrest fan and remove the fan.
-- Spray the rubber fasteners -1- for the elastic fan bracket with silicone-free lubricating spray and remove the fan from the rubber fasteners.
