Backrest Adjustment Hand Wheel, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Move the front seat all the way forward and up.

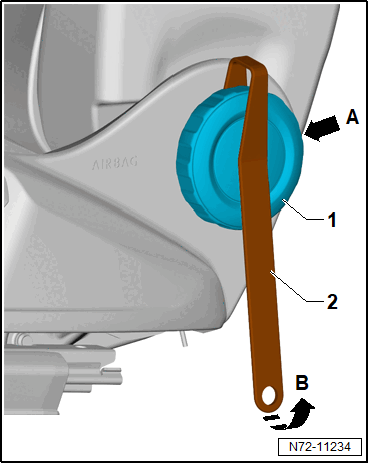

-- Turn the backrest adjustment hand wheel -1- until one catch is visible from behind -arrow A-. Use a flashlight if necessary.
-- Attach the Assembly Tool:3399 -2- to the catch and pry off the hand wheel -arrow B-.
-- Turn the backrest adjustment hand wheel another 120° and repeat the process.
-- Remove the backrest adjustment hand wheel.
