Driver And Front Passenger Multi-Contour Seat Compressor -V439- / -V440- And Pressure Line, Preparations For Leak Check

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When an appropriate entry is made in the event memory, there is a prompt in "Guided Fault Finding" to perform a leak check using the Vehicle Diagnostic Tester.

Then the preparations for this leak test are described that must be carried out directly in the seat.

Connection diagram with assignment of the pneumatic lines to the air cushions. Refer to CONNECTION DIAGRAM - PNEUMATIC SYSTEM .

Special tools and workshop equipment required

Vehicle Diagnostic Tester
Digital Pressure Sensor:V.A.G 1397B

Fig 1: Identifying Turbocharger Tester V. A. G 1397 A
Courtesy of AUDI
Pneumatic Repair Set:VAS 6618A

Procedure

In one of the test steps in "Guided Fault Finding", there is a prompt to connect the Digital Pressure Sensor:V.A.G 1397B to the pneumatic line from the Driver Multi-Contour Seat Compressor -V439- / Front Passenger Multi-Contour Seat Compressor -V440-.

The backrest cover is removed. Refer to BACKREST COVER, REMOVING AND INSTALLING .

-- Disconnect the pneumatic line -1- to theDriver Multi-Contour Seat Compressor -V439- /Front Passenger Multi-Contour Seat Compressor -V440- at the marking -arrow-. Refer to PNEUMATIC LINES, DISCONNECTING AND CONNECTING .

Courtesy of AUDI

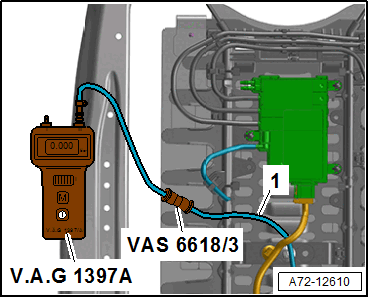

-- Using a hose and coupling from the Pneumatic Repair Set :VAS 6618A , connect the Digital Pressure Sensor:V.A.G 1397B to the pneumatic line -1- from the compressor.

Courtesy of AUDI

NOTE:

To connect, insert the pneumatic lines into the Pneumatic Repair Set - Exterior Connector 5x3 :VAS 6618/3 from both sides -A arrows-.

Fig 2: Attach The Connecting Sleeves

Courtesy of AUDI

To release, push the release rings -B arrows- and simultaneously remove pneumatic lines -C arrows-.

In one of the test steps in "Guided Fault Finding", there is a prompt to connect the Digital Pressure Sensor:V.A.G 1397B directly to the compressor.

Front seat released in the vehicle and folded forward with the connectors connected. Refer to FRONT SEAT, REMOVING AND INSTALLING .

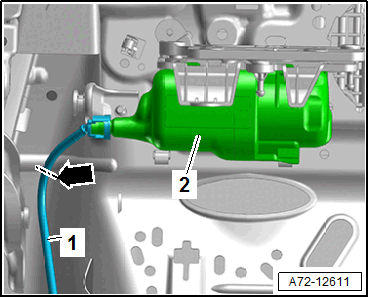

-- Disconnect the pneumatic line -1- from the compressor -2- at the marking -arrow-. Refer to PNEUMATIC LINES, DISCONNECTING AND CONNECTING .

Courtesy of AUDI

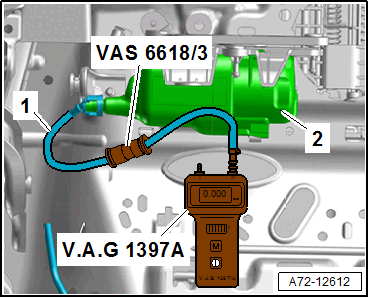

-- Using a hose and coupling from the Pneumatic Repair Set :VAS 6618A , connect the Digital Pressure Sensor:V.A.G 1397B to the pneumatic line -1- of the compressor -2-.

Courtesy of AUDI

-- Connect the pneumatic lines following the leak test. Refer to PNEUMATIC LINES, DISCONNECTING AND CONNECTING .
