Front Passenger Multi-Contour Seat Control Module -J872- /Driver Multi-Contour Seat Control Module -J873-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Follow all safety precautions when working on pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.
-- Remove the backrest cover. Refer to BACKREST COVER, REMOVING AND INSTALLING .
-- For reinstallation, mark pneumatic lines at the separating point with a waterproof permanent marker.

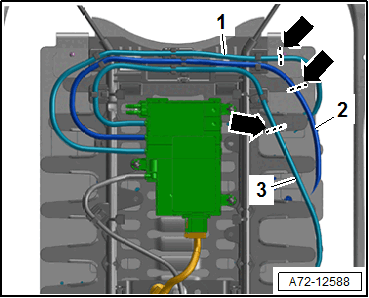

-- Disconnect the pneumatic lines at the markings -arrows-. Refer to PNEUMATIC LINES, DISCONNECTING AND CONNECTING .
- Pneumatic Line to Upper Air Cushion
- Pneumatic Line to Center Air Cushion
- Pneumatic Line to Lower Air Cushion

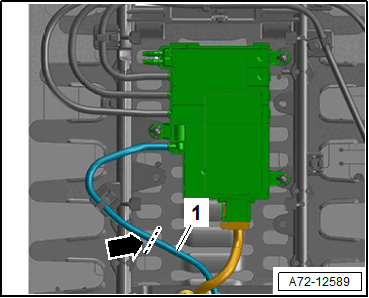

-- Disconnect the pneumatic line -1- to the compressor for the multi-contour seat at the marking -arrow-. Refer to PNEUMATIC LINES, DISCONNECTING AND CONNECTING .

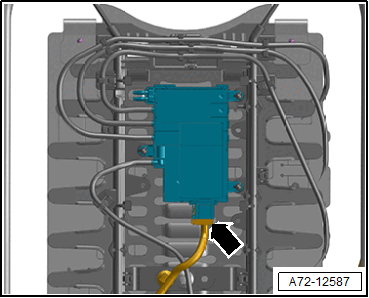

-- Disconnect the connector -arrow- from the control module.
Fig 1: Front Passenger Multi-Contour Seat Control Module -J872- /Driver Multi-Contour Seat Control Module -J873-
Remove the multi-contour seat control module

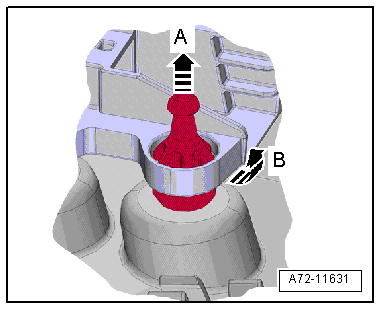

-- Pull the rubber bushing along the length -arrow A-.
-- At the same time remove the control module from the rubber bushing -arrow B-.
