Driver Multi-Contour Seat Compressor -V439- /Front Passenger Multi-Contour Seat Compressor -V440-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Follow all safety precautions when working on pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.
-- Unscrew the front seat and tip to the rear with the wires attached. Refer to FRONT SEAT, REMOVING AND INSTALLING .

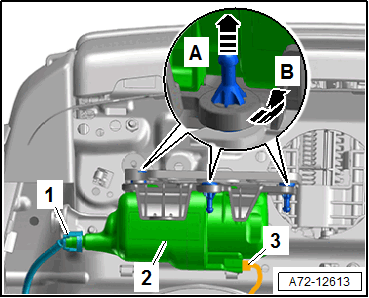

-- Push the release ring and disconnect the pneumatic line -1- on both sides of the compressor -2-.
-- Disconnect the connector -3-.
-- Pull the rubber bushing along the length -arrow A-.
-- At the same time remove the compressor from the rubber bushing -arrow B-.
