Overview - Steering Column Trim Panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

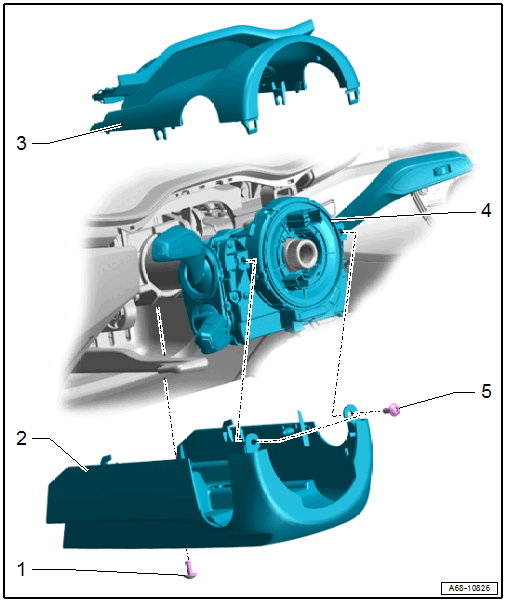

Fig 1: Exploded View Of Steering Column Trim Panel
GWWA68-10826Courtesy of AUDI
  1. Bolt
    • 1.5 Nm
  2. Lower Steering Column Trim Panel
  3. Upper Steering Column Trim Panel
  4. Steering Column Switch Module
  5. Bolt
    • Quantity: 2
    • 2.5 Nm
