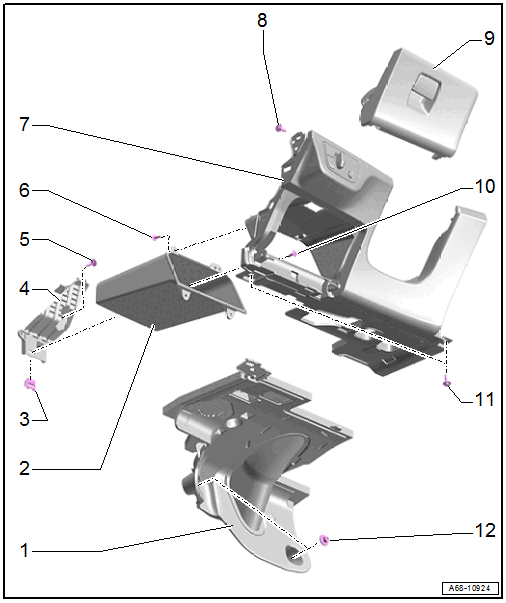

Overview - Instrument Panel Cover, Driver Side
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Driver Side Footwell Cover
- RHD: is a mirror image
- Refer to DRIVER SIDE FOOTWELL COVER, REMOVING AND INSTALLING
- Storage Compartment
- RHD: is a mirror image
- Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING
- Spring Nut
- Insert in the bracket
- Angle Support
- RHD: is a mirror image
- Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING
- Bolt
- 3 Nm
- Bolt
- Quantity: 4
- 1 Nm
- Driver Side Instrument Panel Cover
- RHD: is a mirror image
- Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING
- Bolt
- 3 Nm
- Storage Compartment Cover
- RHD: is a mirror image
- Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING
- Bolt
- 1.5 Nm
- Bolt
- Quantity: 2
- 3 Nm
- Nut
- Quantity: 2
- 2 Nm
