Lower Steering Column Trim Panel, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Move the steering wheel as far to the rear and down as possible. Use the full steering column adjustment range for this.

-- Turn the steering wheel counterclockwise 90° from the straight position.

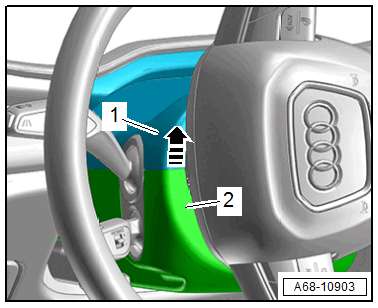

-- Pry out the upper steering column trim panel -1- with a small flat-head screwdriver carefully from the lower steering column trim panel -2- at the position shown -arrow-.

Courtesy of AUDI

-- Turn the steering wheel back 180° and repeat the procedure on the opposite side.

-- Disengage the upper steering column trim panel on the lower steering column trim panel and move upward to the side.

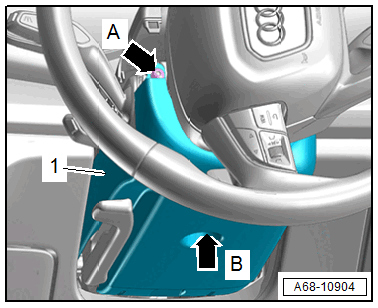

-- Remove the accessible bolt -arrow A- for the lower steering column trim panel.

Courtesy of AUDI

-- Turn the steering wheel back 180° and remove bolt on the opposite side.

-- Bring the steering wheel back into the center (wheels are straight).

-- Remove the bolt -arrow B- and remove the lower steering column trim panel -1-.

-- Disengage the cable holder on the steering column trim panel.

-- If installed, disconnect the connector for the Steering Column Adjustment Switch -E167-.
