Glove Compartment Lid, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .
-- Remove the glove compartment lid damping element. Refer to GLOVE COMPARTMENT LID DAMPING ELEMENT, REMOVING AND INSTALLING .
-- Place the glove compartment on a soft surface.

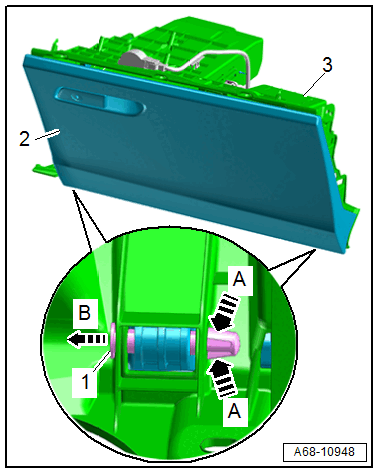

-- Press the retainers together using pliers -A arrows- and at the same time, remove the hinge pin -1- in the -direction of arrow B- using a screwdriver.
-- Repeat the procedure on the opposite side.
-- Remove the hinge pin using pliers.
-- Remove the glove compartment cover -2- from the glove compartment -3-.
