Glove Compartment Lid Damping Element, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

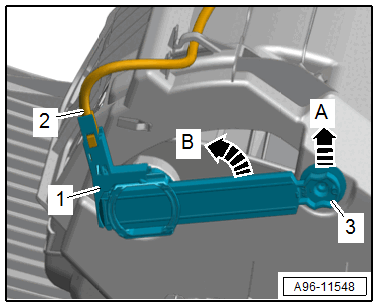

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .
-- Disconnect the connector -2-.
-- Press the operating arm -3- out of the locking mechanism -arrow A-.
-- Release the switch -1- counter-clockwise -arrow B- and remove it.
