Driver Side Instrument Panel Cover, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the driver side instrument panel side cover. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .

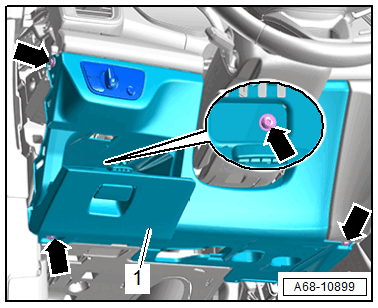

-- Open the storage compartment cover -1-.
-- Remove the bolts -arrows-.

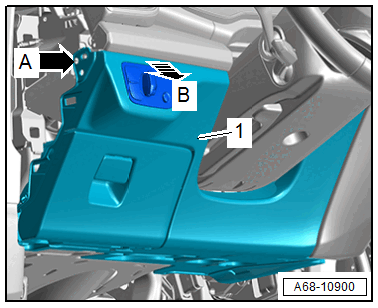

-- Disengage the instrument panel cover -1- on the side at the pin -arrow A-.
-- Unclip the instrument panel cover -1- from the instrument panel by hand or using the Wedge:T10383/1 -arrow B-.
-- Disconnect the connector from the light switch.
-- Remove the driver side instrument panel cover -1-.
