Driver Side FOOTWELL Cover, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the driver side instrument panel side cover. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .
-- Remove the instrument panel cover on the driver side. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

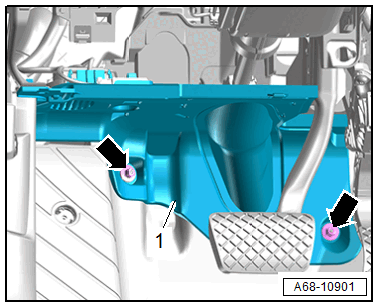

-- Remove the nuts -arrows- and remove the footwell cover -1- from the threaded pins.
-- Disengage the diagnostic connection on the footwell cover.
-- If equipped, disconnect the connectors for the footwell lamp, parking aid warning buzzer and the emergency call speaker.
-- Remove the footwell cover on the driver side toward the rear.
