Front Center Armrest, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the center console (refer to CENTER CONSOLE, REMOVING AND INSTALLING ) and place it on a soft surface.

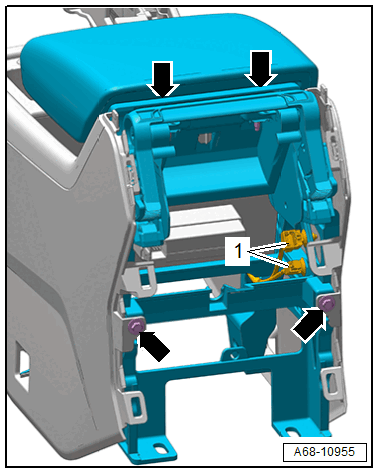

-- Remove the center armrest bolts -arrows-.
-- Free up the connectors -1-.

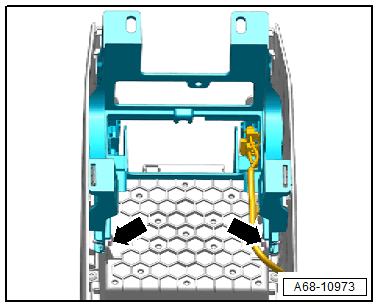

-- Remove the center armrest bolts -arrows-.

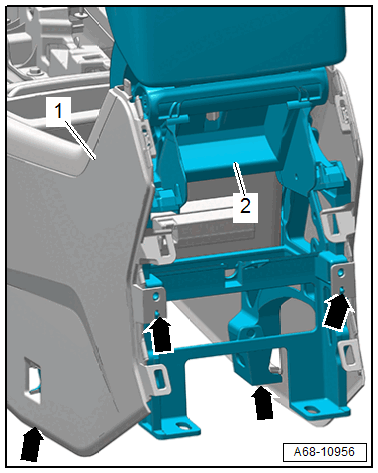

-- Open the center armrest -2-.
-- Disengage the center armrest -2- at the positions shown -arrows- on the center console downward.
-- Push the center console -1- slightly at the sides outward from the center armrest.
-- Remove the center armrest -2- toward the rear from the center console -1- at the same time.
