Center Armrest Upper Section, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Fold the center armrest up.

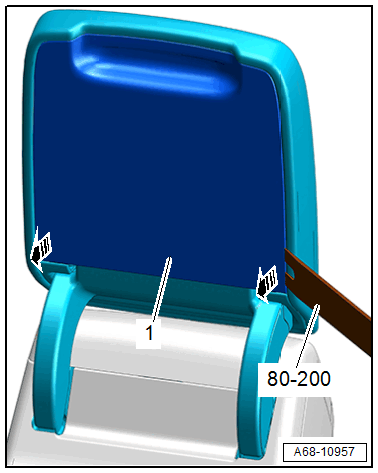

-- Starting at the back, unclip the cover -1- from the center armrest -arrows- using the Pry Lever:80-200
.
 Courtesy of AUDI
|
-- Unclip the cover -1- completely and remove it.

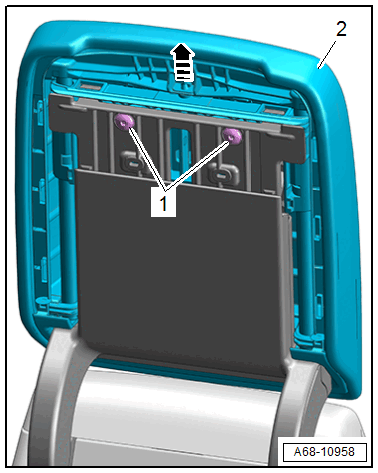

-- Remove the bolts -1-.
 Courtesy of AUDI
|
-- Disengage the center armrest upper section -2- upward -arrow- and remove it.
