Sun Shade, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .
-- Place the door trim panel on a soft surface.

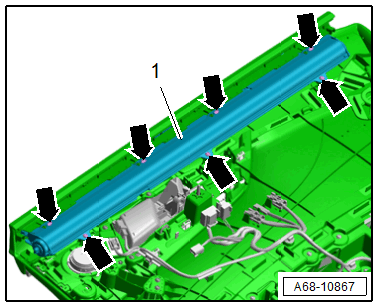

-- Remove the bolts -arrows-.
-- Loosen the sun shade -1- from the door trim panel.
TIP
Market-specific version for China: the sun shade is secured with eight screws.
-- Guide the sun shade handle out through the door trim panel and remove the sun shade.
-- Release the retainers -arrows- one after the other with a screwdriver. At the same time, unclip the sun shade cover -1- from the door trim panel using the Wedge:T10383/1 .
-- Release the remaining tabs and remove the sun shade cover from the door trim panel.
