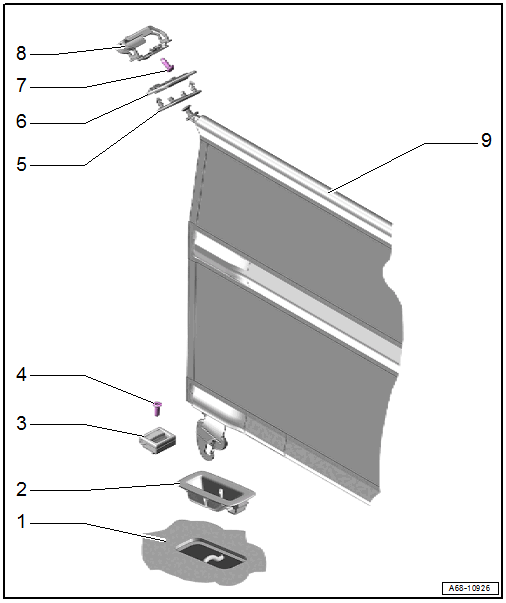

Overview - Screen Separator
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Screen Separator Mount
- Welded to the backrest frame
- Screen Separator Mount Trim
- Clip into the rear seat backrest
- Refer to SCREEN SEPARATOR MOUNT COVER, REMOVING AND INSTALLING
- Tie Down
- Quantity: 4
- Refer to TIE DOWN, REMOVING AND INSTALLING
- Bolt
- 15 Nm
- Trim
- For the screen separator mounting eye
- Quantity: 4
- Clipped to the bracket in the headliner
- Bracket
- For the mounting eye trim
- Quantity: 4
- Clipped into the headliner with the trim
- Bolt
- 9 Nm
- Mounting Eye
- Quantity: 4
- Refer to SCREEN SEPARATOR MOUNTING EYE, REMOVING AND INSTALLING
- Position the securing tab on the mounting eye in the opening in the body
- Screen Separator
