Rear Center Console Vent, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

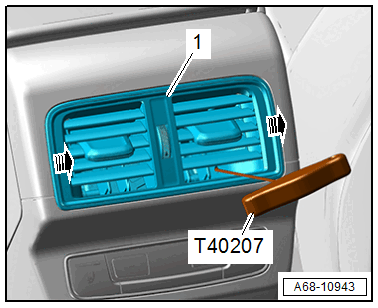

The vent has a hole on both sides for attaching the Hook Tool:T40207 .
-- Carefully insert the Hook Tool:T40207 between the slats and hook it into the side of the vent.
CAUTION:
Risk of damaging the slats.
- Proceed very carefully when removing and installing.
-- Remove the vents -1- on both sides alternating from side to side -arrows-.
-- Disconnect the connector.
