Storage Compartment, Center Console Attachments

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

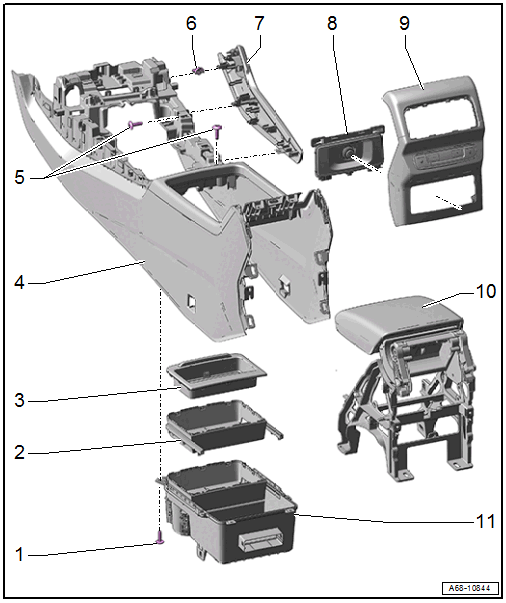

Fig 1: Exploded View Of Storage Compartment, Center Console Attachments

Courtesy of AUDI

Bolt
- Quantity: 7
- 1.4 Nm
Storage Compartment
- Refer to CUPHOLDER, REMOVING AND INSTALLING
Telephone Baseplate -R126-
- Refer to TELEPHONE BASEPLATE, REMOVING AND INSTALLING .
Center Console
- Refer to CENTER CONSOLE, REMOVING AND INSTALLING
Bolts
- 1.4 Nm
Clip
- Quantity: 7
- Replace damaged or deformed clips
Center Console Trim Panel
- Refer to CENTER CONSOLE TRIM PANEL, REMOVING AND INSTALLING
- Replace damaged or deformed clips
Rear Ashtray/Trim
- Equipped on some models
- Refer to REAR ASHTRAY, REMOVING AND INSTALLING
Rear Center Console Trim
- Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING
- Replace damaged or deformed clips
Front Center Armrest
- Refer to FRONT CENTER ARMREST, REMOVING AND INSTALLING
Cupholder/Multimedia Device Storage Compartment
- Refer to CUPHOLDER, REMOVING AND INSTALLING
  Center Console Insert Decorative Frame

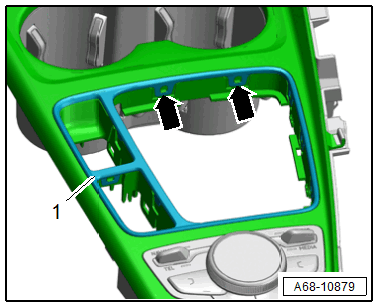

  Fig 2: Center Console Insert Decorative Frame
  Courtesy of AUDI
  - Refer to CENTER CONSOLE INSERT DECORATIVE FRAME, REMOVING AND INSTALLING
