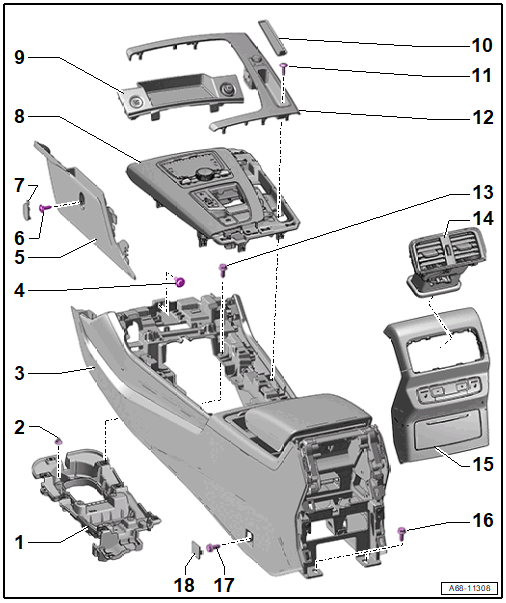

Center Console
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Bracket
- Nut
- Quantity: 4
- 8 Nm
- Center Console
- Bolt
- 3 Nm
- Footwell Center Console Trim Panel
- Quantity: 2
- Refer to FRONT FOOTWELL CENTER CONSOLE TRIM PANEL, REMOVING AND INSTALLING
- Bolt
- 1.5 Nm
- Cap
- Push into the center console trim panel
- Insert
- Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING
- Replace damaged or deformed clips
- Front Storage Compartment
- Storage Compartment Trim
- Bolt
- 1.5 Nm
- Decorative Trim
- Refer to CENTER CONSOLE DECORATIVE TRIM, REMOVING AND INSTALLING
- Replace damaged or deformed clips
- Bolt
- Quantity: 6
- 3 Nm
- Rear Vent
- Refer to REAR CENTER CONSOLE VENT, REMOVING AND INSTALLING
- Replace damaged or deformed clips
- Insert and press in all the way into the installation opening
- Rear Trim
- Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING
- Replace damaged or deformed clips
- Bolt
- Quantity: 2
- 20 Nm
- Bolt
- Quantity: 2
- 20 Nm
- Cap
- Quantity: 2
- Push in the center console
