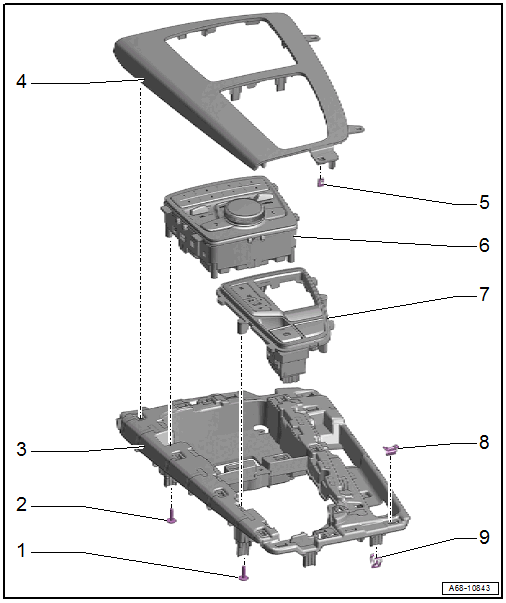

Center Console Insert
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Quantity: 4
- Tightening specification. Refer to COMPONENT LOCATION OVERVIEW - LAMPS IN CENTER CONSOLE .
- Bolt
- Quantity: 4
- Tightening specification. Refer to COMPONENT LOCATION OVERVIEW - INFOTAINMENT SYSTEM .
- Insert
- Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING
- Replace damaged or deformed clips
- Decorative Trim Insert
- Refer to CENTER CONSOLE INSERT DECORATIVE TRIM, REMOVING AND INSTALLING
- Replace damaged or deformed clips
- Clip
- Quantity: 7
- Replace damaged or deformed clips
- Multimedia System Control Head -E380-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - INFOTAINMENT SYSTEM .
- Selector Lever Transmission Range Display -Y5-
- Removing and installing. Refer to COMPONENT LOCATION OVERVIEW - LAMPS IN CENTER CONSOLE .
- Clip
- Quantity: 8
- Replace damaged or deformed clips
- Clip
- Quantity: 6
- Replace damaged or deformed clips
