Front FOOTWELL Center Console Trim Panel, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Move the front seat all the way back.

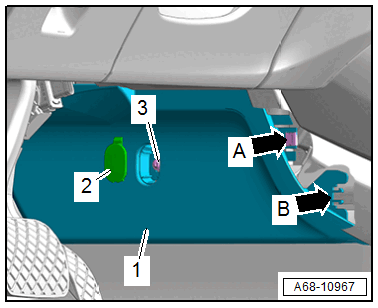

-- Unclip the cap -2- with a small screwdriver.

Courtesy of AUDI

-- Remove the bolt -3- behind it.

-- Remove the trim panel -1- toward the front out of the clamp -arrow A- and remove the retainer -arrow B- from the center console.

-- Remove the trim panel -1- downward.
