Center Console, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Move the front seats all the way forward into the highest position.

-- Remove the center console rear trim. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

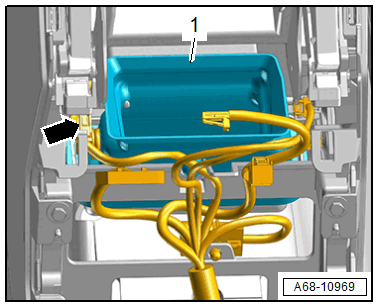

-- If equipped, remove the air duct intermediate piece -1- for the rear vent in the center console.

Courtesy of AUDI

-- Disconnect the connector -arrow-.

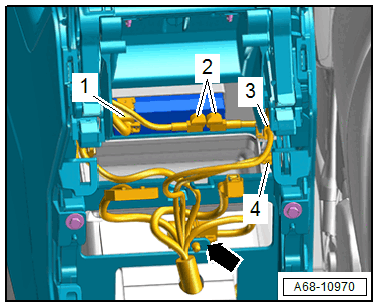

-- Equipped on some models: free up the connectors -1- through -4- and free up the wires -arrow-.

Courtesy of AUDI

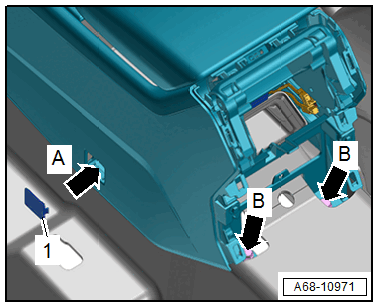

-- Pry off the cap -1- with a small screwdriver.

Courtesy of AUDI

-- Remove the bolt -arrow A- behind it.

-- Repeat the procedure on the opposite side.

-- Remove the bolts -B arrows-.

-- Move the front seats all the way back and in the lowest position.

-- Remove the front footwell center console trim panels. Refer to FRONT FOOTWELL CENTER CONSOLE TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the center console decorative trim. Refer to CENTER CONSOLE DECORATIVE TRIM, REMOVING AND INSTALLING .

-- Remove the center console insert. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .

-- Remove the front storage compartment in the center console. Refer to FRONT CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .

-- If equipped: remove the selector mechanism. Refer to SHIFT MECHANISM .

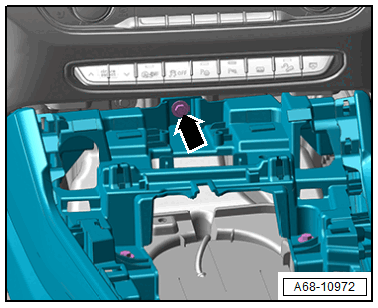

-- Remove the bolt -arrow-.

Courtesy of AUDI

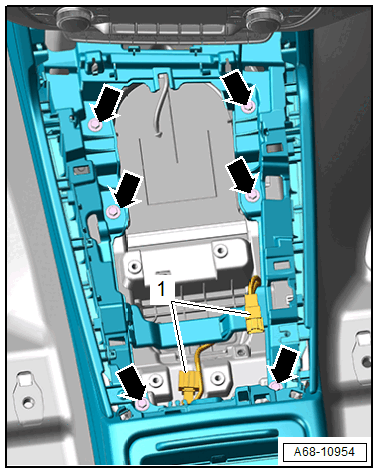

-- Disconnect the connectors -1-, if equipped.

Courtesy of AUDI

-- Remove the bolts -arrows-.

-- Lift up the rear center console and pull toward the rear while guiding out the connectors.

-- Remove the center console carefully toward the rear.
