Center Console Trim Panel, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

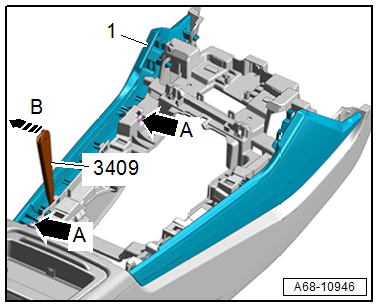

-- Remove the bolts -A arrows-.
-- Starting at the back, unclip the trim panel -1- from the center console -arrow B- using the Trim Removal Wedge:3409 .
-- Disengage the remaining retainers for the trim panel and remove the trim panel.
