Center Console Rear Trim, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Move the front seats all the way forward.
-- If equipped, remove the rear vent in the center console. Refer to REAR CENTER CONSOLE VENT, REMOVING AND INSTALLING .
-- Slide the upper section of the center armrest forward.

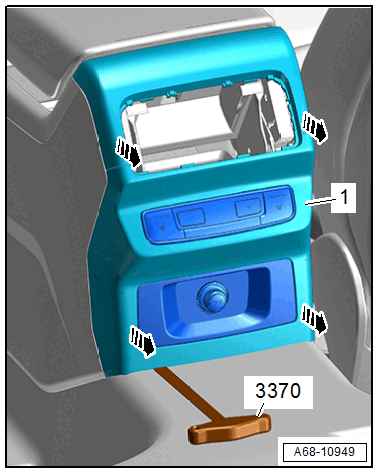

-- Guide the Backrest Panel Tool:3370 under the trim and hook it in at the bottom of the trim.
-- Carefully remove and unclip the trim -1- from the center console alternating from side to side -arrows-.

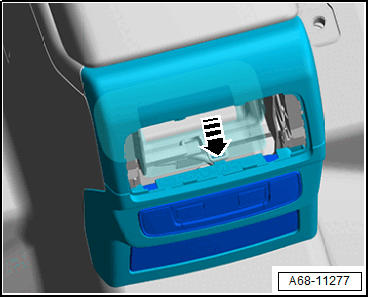

-- Carefully release the remaining tabs -arrow- on the trim by hand and/or with the Trim Removal Wedge:3409 .
-- Remove the trim from the center console toward the rear by pressing the hook downward with a flat-head screwdriver.
-- Disconnect the connectors.
