Center Console Insert, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the center console decorative trim. Refer to CENTER CONSOLE DECORATIVE TRIM, REMOVING AND INSTALLING .
Vehicles with gearshift lever

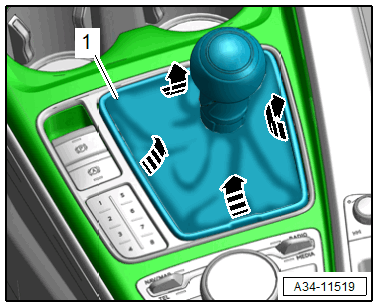

-- Lift the shift lever boot -1- by hand or carefully pry it out on the side with the Trim Removal Wedge:3409 -arrows- and fold it upward.
Vehicles with selector lever
-- Remove the selector lever handle. Refer to SHIFT MECHANISM .
Continuation for all vehicles

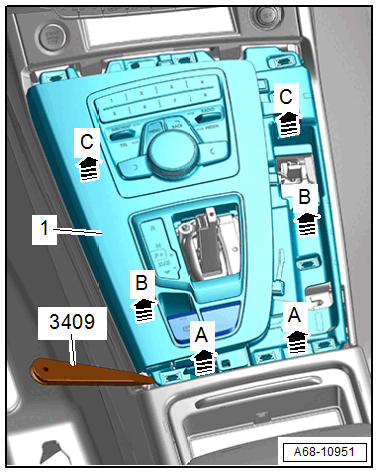

-- Starting at the back, unclip the insert -1- upward from the center console -arrow A- through -arrow C- using the Trim Removal Wedge:3409 .
-- Disengage the remaining hooks from the insert.
-- Carefully turn the insert -1-, disconnect the connectors and remove them.
