Center Console Bracket, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
-- Remove the selector mechanism. Refer to SHIFT MECHANISM .
-- Remove the noise insulation.

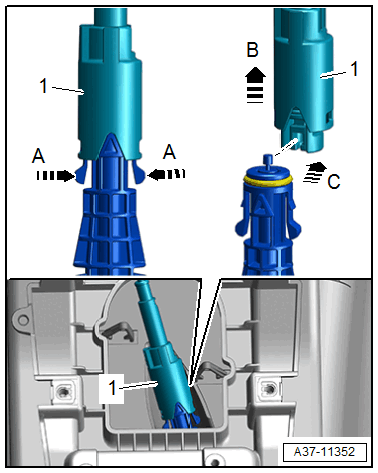

-- Release the retainers -A arrows- and slide the sleeve -1- on the emergency release cable in the -direction of the arrow B-.
-- Disengage the rear section of the emergency release cable from the front section of the emergency release cable -arrow C-.

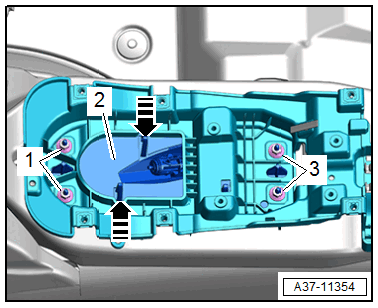

-- Remove the nuts -1- and -3-.
-- Release the retainers -arrows-, lower the brackets -2- for the emergency release.
-- Remove the center console bracket.
