Crimping Outer Conductor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Crimping Outer Conductor

Courtesy of AUDI OF AMERICA, LLC

-- Slide the sleeve -2- and outer contact -1- over the inner conductor. The knurled contact piece must be pushed under the shield, but over the aluminum foil.

-- Slide on the outer contact piece -3- all the way. Make the bushing/pin fit correctly when doing this.

-- Push the sleeve -2- up to the outer contact.

Fig 2: Crimping Outer Conductor

Courtesy of AUDI OF AMERICA, LLC

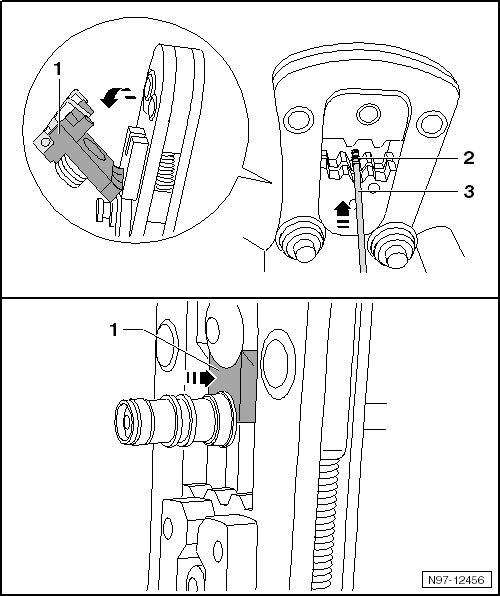

-- Open the tool and fold out the positioner -1-.

-- Position the antenna wire -3- with the outer contact -2- attached, into the center profile at the contact edge of the tool head.

-- Close the tool then open it again.

-- Remove the antenna wire -3-.
