Overview - Starter
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

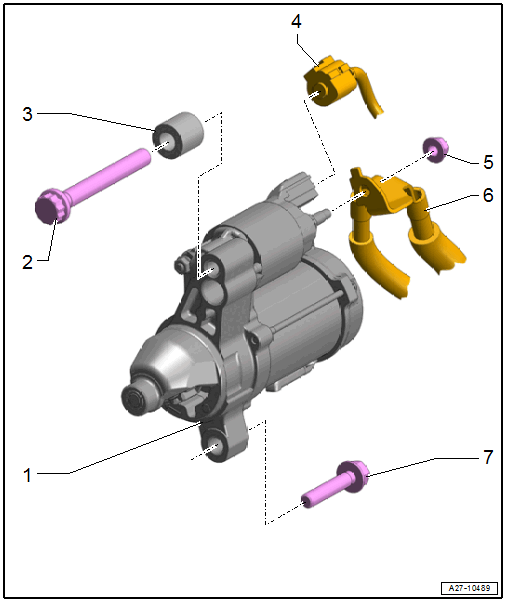

- Starter
- Removing and Installing. Refer to STARTER, REMOVING AND INSTALLING .
- Bolt
- Tightening specification for vehicles with manual transmission/dual clutch transmission. Refer to TIGHTENING SPECIFICATIONS .
- Tightening specification for vehicles with automatic transmission. Refer to TIGHTENING SPECIFICATIONS .
- Spacer Sleeve
- Only on 4-cylinder engines
- Connector
- Nut
- 20 Nm
- B+ terminal
- Bolt
- Tightening specification for vehicles with manual transmission/dual clutch transmission. Refer to TIGHTENING SPECIFICATIONS .
- Tightening specification for vehicles with automatic transmission. Refer to TIGHTENING SPECIFICATIONS .
