Positive Cable Wire Junction, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Disconnect the battery. Refer to Battery -A-, DISCONNECTING AND CONNECTING, 0K4 AND VH2 .
-- Remove the luggage compartment floor. Refer to LUGGAGE COMPARTMENT FLOOR, REMOVING AND INSTALLING .
-- Move the trim -2- for the body to the side.
-- Release the catch -arrow- and open the cover -1-.

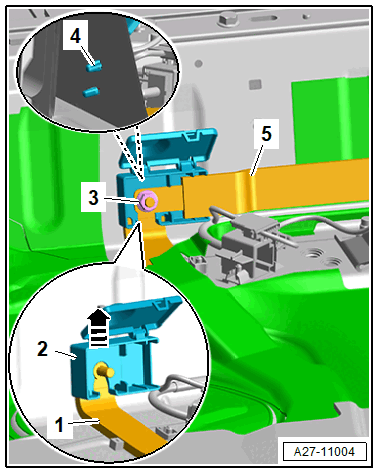

-- Remove the nut -3-.
-- Free up the positive cables -5-.
-- Pry off the distributor -2-, doing this will destroy the catches -4-.
-- Remove the distributor upward from the positive cable -1- in the direction of -arrow-.
