Battery -A-, REMOVING AND INSTALLING, 0K4 AND VH0: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Disconnect the battery. Refer to Battery -A-, DISCONNECTING AND CONNECTING, 0K4 AND VH0 .

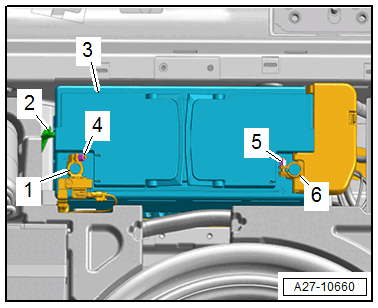

-- Remove the bolts -arrows-.
-- Place the battery bracket with the securing strap -3- toward the front.
-- Remove the battery cover -1-.
-- Open the cover -2- over the battery positive terminal.
-- Loosen the nut -5- several turns and remove the battery positive cable terminal clamp -6- from the battery terminal.
-- Disconnect the central venting system hose -2-.
-- Lift the battery -3- up and out of the luggage compartment.
- The disposal regulations for batteries and sulfuric acid must be followed when disposing of batteries. Refer to Battery .
