Battery -A-, REMOVING AND INSTALLING, 0K4 AND VH0: Installing

TIP:

Batteries from the Audi Parts Program have a base strip adapter for conforming to different clamping strips. See the battery operating instructions for information on when and how to use the base strip adapter.

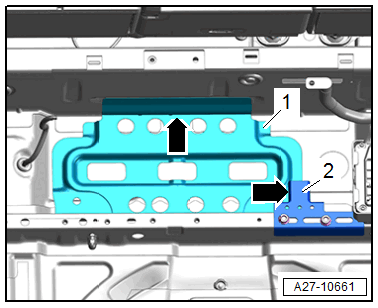

-- Move the battery to the stop on the retaining bracket -1- and on the retaining bracket -2- (if equipped) -arrows-, so that the battery clamping strip engages in the retaining bracket. (The retaining bracket is installed on the left or right depending on the version).

Courtesy of AUDI

• The battery must not be able to move at all anymore.

-- Attach the central venting system hose.

Install in reverse order of removal. Note the following:

-- Check the battery for secure fit after installation.

-- Connect the battery. Refer to Battery -A-, DISCONNECTING AND CONNECTING, 0K4 AND VH0 .

-- If the battery was replaced, then the new battery must be adapted.

Procedure

-- Connect the Vehicle Diagnostic Tester.

-- Select the Diagnostic  mode and start the diagnosis.

-- Select the Test plan  tab.

-- Select the Select individual test  button and select the following tree structure consecutively:

• Body
• Electrical system
• 0001 - OBD-capable systems
• 0019 - Data Bus on Board Diagnostic Interface - J533
• 0019 - Data Bus on Board Diagnostic Interface, functions
• 0019 - Adaptation
• 0019 - Adapt battery

-- Start the selected program and follow the instructions on the Vehicle Diagnostic Tester display.

When the battery is reconnected, the following steps must be performed:

• Activate the one-touch up/down function for the power window regulators. Refer to the appropriate Service Information.
• Check all the control module DTC memories and erase the displayed "undervoltage" entry using the Vehicle Diagnostic Tester.

TIP:

After reconnecting the power supply, the ESP warning lamp can only go out after the vehicle has been driven a few meters.
