Auxiliary Battery -A1-, REMOVING AND INSTALLING, VH0 AND VH0: Installing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

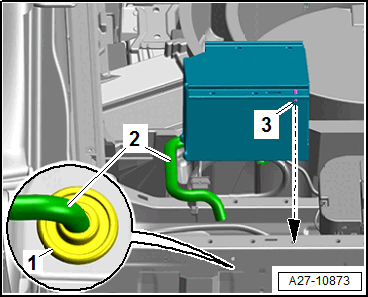

-- Bring the protective housing with Auxiliary Battery -A1- into the installation position, at the same time guide the pressure equalization hose -2- in the grommet -1-.
- The alignment pin -3- on the protective housing engages in the hole -arrow-.
-- Check the protective housing for secure fit after installation.
-- Connect the battery. Refer to Battery -A-, DISCONNECTING AND CONNECTING, 0K4 AND VH0 .
