Battery -A-, DISCONNECTING AND CONNECTING, 0K4 AND VH0: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

The Auxiliary Battery -A1- is switched in parallel to the Battery -A-. The vehicle electrical system will only be de-energized if the Auxiliary Battery -A1- is de-energized first.

Special tools and workshop equipment required

Analog/Digital Multimeter:FLU83III

Fig 1: Analog/Digital Multimeter FLU83III
Courtesy of AUDI

Disconnecting

-- Switch off the ignition and place the ignition key outside of the vehicle.

-- Remove the rear luggage compartment floor. Refer to LUGGAGE COMPARTMENT FLOOR, REMOVING AND INSTALLING .

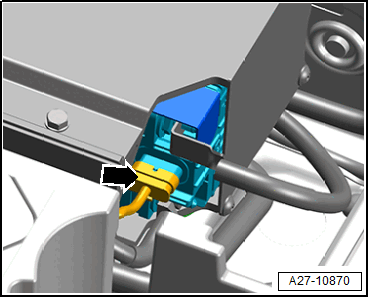

-- Disconnect the connector -arrow- to the Auxiliary Battery -A1-. The Auxiliary Battery -A1- is de-energized by disconnecting the connector -arrow-.

Courtesy of AUDI

-- If equipped, open the cover -3- on the battery negative terminal of the Battery -A-.

Fig 2: Disconnecting Battery

Courtesy of AUDI

-- Loosen the nut -1- several turns and remove the battery ground cable clamp -2- from the battery terminal.
