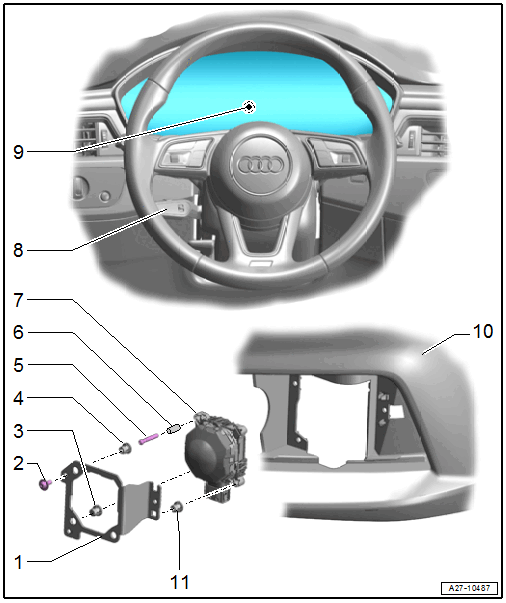

Component Location Overview - Adaptive Cruise Control (Acc)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Retaining Plate
- Bolt
- Quantity: 3
- 2.5 Nm
- Clip
- Closed version
- Cannot be removed without being damaged
- Note the installation position
- Clip
- Open version
- Cannot be removed without being damaged
- Stud Bolt
- Quantity: 3
- Note the adjustment dimension. Refer to Installing .
- Clip
- Quantity: 3
- Must be replaced when the stud bolt is removed
- Replacing. Refer to CLIP ON Control Module for Adaptive Cruise Control -J428-, REPLACING .
- Distance Regulation Control Module
- Right: Control Module for Adaptive Cruise Control -J428-
- Left: Control Module 2 for Adaptive Cruise Control -J850-
- Removing and Installing. Refer to Control Module for Adaptive Cruise Control -J428- / Control Module 2 for Adaptive Cruise Control -J850-, REMOVING AND INSTALLING .
- Adjust the adaptive cruise control. Refer to ADAPTIVE CRUISE CONTROL (ACC), ADJUSTING .
- Operating Lever for Adaptive Cruise Control
- Shared component with the steering column switch module. Cannot be replaced separately
- Removing and Installing. Refer to STEERING COLUMN SWITCH MODULE, REMOVING AND INSTALLING .
- Instrument Cluster
- With Instrument Cluster Control Module -J285-
- Front Bumper
- Clip
- Open version
- Cannot be removed without being damaged
