Warning Label, Checking, AUDI Q5: Notes

• A warning label is located on all high-voltage components.
• For maintenance work pay attention that this warning label is not damaged or dirty and all high-voltage components are present.
• Replace if necessary.

Warning labels are on the following assembly groups:

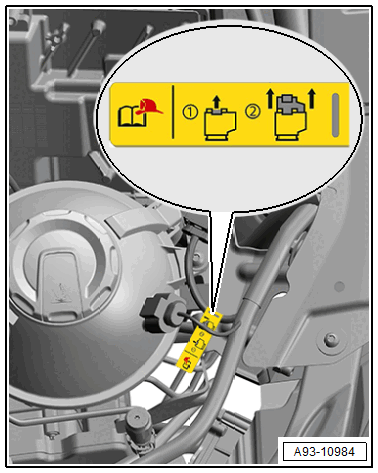

• Rescue tag in the engine/motor compartment on the coolant expansion tank

  Courtesy of AUDI OF AMERICA, LLC

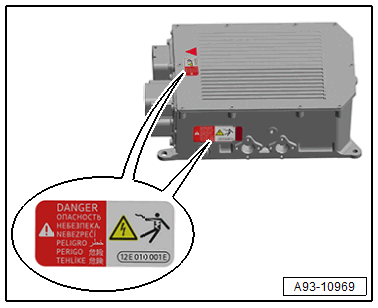

• High-Voltage Battery Charger 1 -AX4-

  Courtesy of AUDI OF AMERICA, LLC

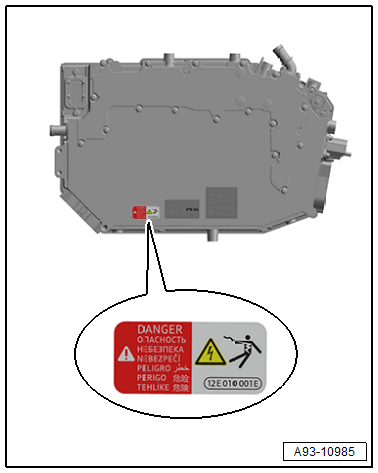

• Electric Drive Power and Control Electronics -JX1- - Bottom

  Courtesy of AUDI OF AMERICA, LLC

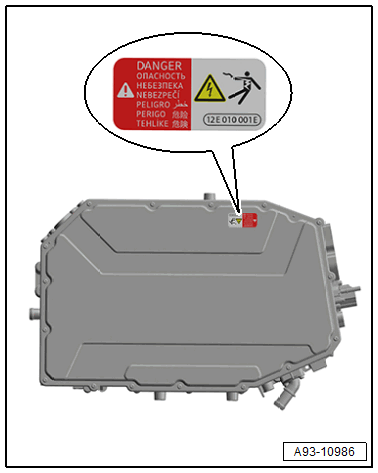

• Electric Drive Power and Control Electronics -JX1- - Top

  Courtesy of AUDI OF AMERICA, LLC

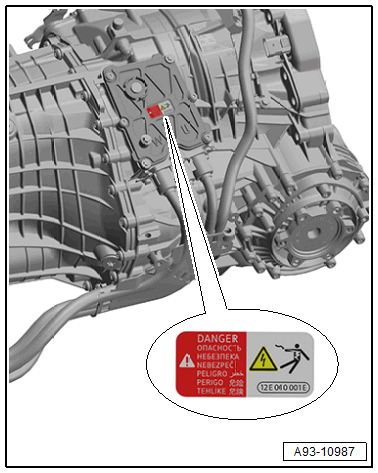

• Three-Phase Current Drive -VX54-

  Courtesy of AUDI OF AMERICA, LLC

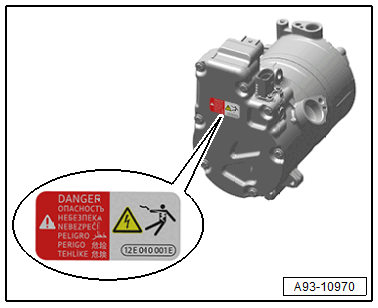

• Electrical A/C Compressor -V470-

  Courtesy of AUDI OF AMERICA, LLC

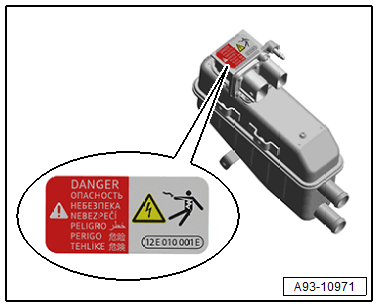

• High-Voltage Heater (PTC) -Z115-

  Courtesy of AUDI OF AMERICA, LLC

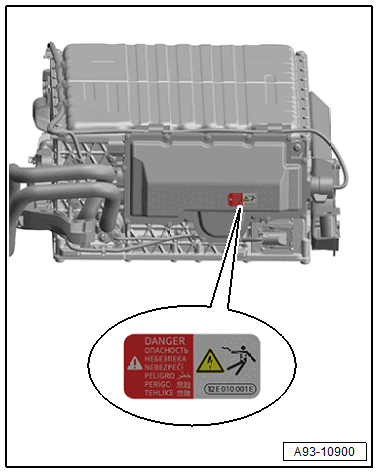

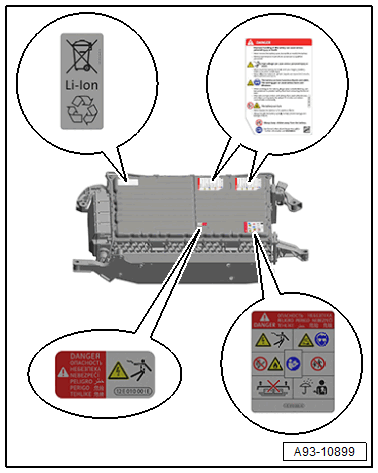

• Hybrid Battery Unit -AX1- at the top

  Courtesy of AUDI OF AMERICA, LLC

TIP:

The front right sticker on the high-voltage battery is only required for North America.

• High-Voltage Battery Control Module -SX6-

  Courtesy of AUDI OF AMERICA, LLC
