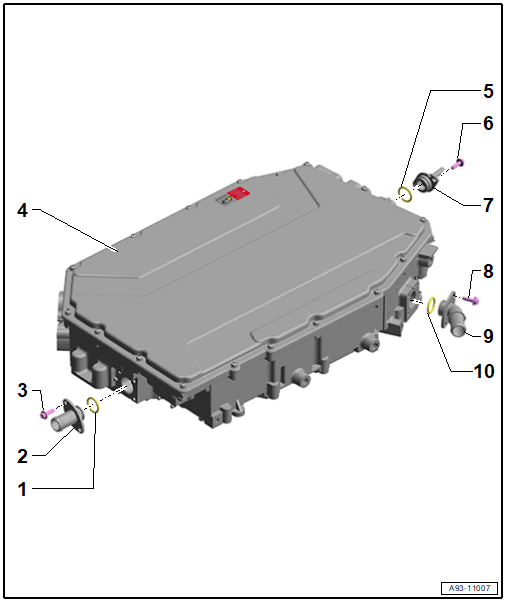

Component Location Overview - Electric Drive Power And Control Electronics And Mount, Attachments, AUDI Q5
WARNING: This page is about a different car, the 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi Q5 e, and 2023 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.
- O-Ring
- No replacement part
- Front Coolant Connection
- No replacement part
- Bolt
- No replacement part
- Electric Drive Power and Control Electronics -JX1-
- Removing and Installing. Refer to ELECTRIC DRIVE POWER AND CONTROL ELECTRONICS, REMOVING AND INSTALLING, AUDI Q5 .
- O-Ring
- No replacement part
- Bolt
- No replacement part
- Connection
- No replacement part
- Bolt
- No replacement part
- Side Coolant Connection
- No replacement part
- O-Ring
- No replacement part
