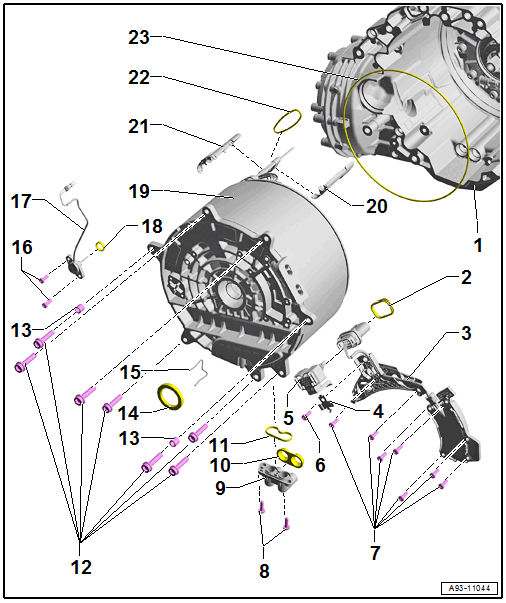

Overview - Electric Drive Motor
WARNING: This page is about a different car, the 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi Q5 e, and 2023 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.
- Transmission
- Removing and installing. Refer to 34 CONTROLS, HOUSING .
- Seal
- If damaged replace the connector housing
- Drive Motor Rotor Position Sensor 1 -G713-
- Removing and Installing. Refer to Drive Motor Rotor Position Sensor 1 -G713-, REMOVING AND INSTALLING: .
- Clamp
- Cap
- For the connector housing
- Bolt
- Replace after removing
- 4 Nm +45°
- Bolt
- Quantity: 7
- Replace after removing
- 4 Nm +45°
- Bolt
- Quantity: 2
- Replace after removing
- 8 Nm +45°
- Oil Return Flange
- Removing and Installing. Refer to OIL RETURN CONNECTION, REMOVING AND INSTALLING .
- Seal
- After removal, replace the Three-Phase Current Drive -VX54-
- Seal
- Replace after removing
- Bolt
- Quantity: 7
- Replace after removing
- 16 Nm + 90°
- Alignment Sleeve
- Quantity: 2
- Seal
- For the input shaft
- Removing and Installing. Refer to INPUT SHAFT SEAL, REPLACING .
- Spring
- Remove using the T-Handle Hook:3438
- Bolt
- Quantity: 2
- Replace after removing
- 4 Nm +45°
- Drive Motor Temperature Sensor -G712-
- Removing and Installing. Refer to Drive Motor Temperature Sensor -G712-, REMOVING AND INSTALLING .
- O-Ring
- Replace after removing
- Three-Phase Current Drive -VX54-
- For the transport or servicing it may be necessary to turn the Three-Phase Current Drive -VX54- using the Hybrid Module Turning Tool:T40410/1 .
- Removing and Installing. Refer to Three-Phase Current Drive -VX54-, REMOVING AND INSTALLING .CAUTION:
Risk of damaging the engine after replacing the, or the dual clutch.
- Adjust the Three-Phase Current Drive -VX54- decoupler and calibrate it. Refer to [For transmission(s) 0DK] Clutch .
- Lower Mount
- Upper Mount
- O-Ring
- After removal, replace the Three-Phase Current Drive -VX54-
- O-Ring
- After removal, replace the Three-Phase Current Drive -VX54-
