Input Shaft Seal, Replacing: Removing
WARNING: This page is about a different car, the 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi Q5 e, and 2023 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the transmission. Refer to 34 CONTROLS, HOUSING .

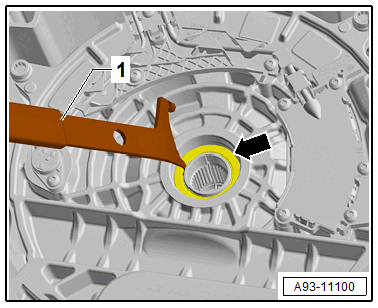

-- Pry out the shaft seal -arrow- carefully using the Puller - Crankshaft/Power Steering Seal:T20143/2 -1-.
CAUTION:
Do not damage the contact surface of the shaft.
