Drive Motor Temperature Sensor -G712-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi Q5 e, and 2023 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the transmission. Refer to 34 CONTROLS, HOUSING .

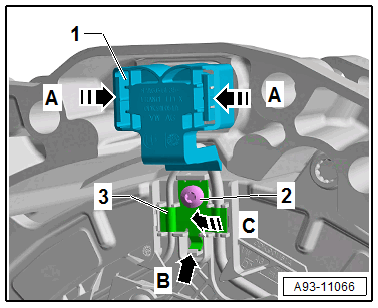

-- Push the catches together -direction of the arrow A- and remove the cap -1-.
-- Remove the bolt -3- and loosen the locking tab -arrow B-.
-- Remove the panel -2- in the -direction of the arrow C-.

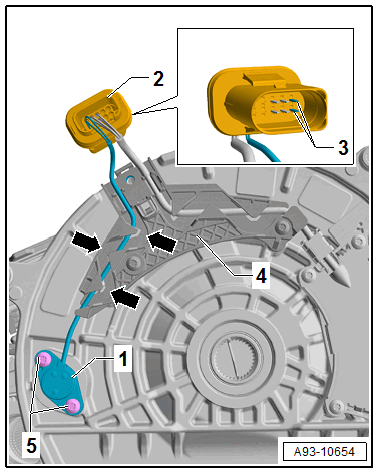

-- Release the flat terminal -3- using the Release Tool Set - Extraction Tool 7A:VAS 1978/7A from the connector housing -2-.
-- Loosen the wire Drive Motor Temperature Sensor -G712- from the bracket -4- -arrows-.
-- Remove the bolts -5- and remove the Drive Motor Temperature Sensor -G712- -1-.
CAUTION:
Risk of destroying the drive motor due to foreign objects.
- Cover the installation opening of the drive motor with a clean cloth.
