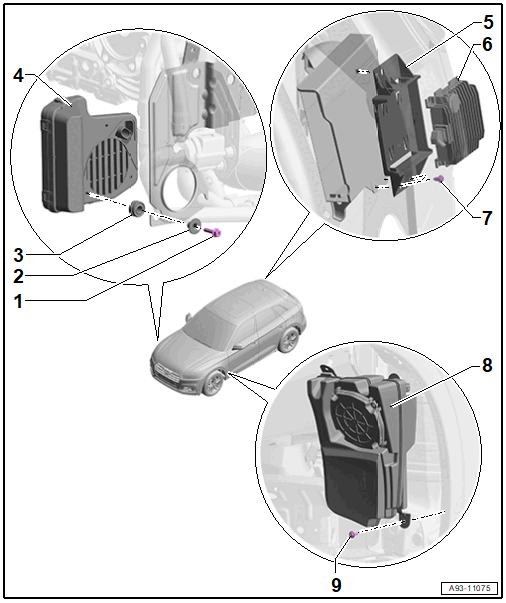

Component Location Overview - Driving Sound/Engine Sound, AUDI Q5
WARNING: This page is about a different car, the 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi Q5 e, and 2023 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Quantity: 3
- 8 Nm
- Bushing
- Quantity: 3
- Grommet
- Quantity: 3
- Engine Sound Generator Actuator 1 -R257-
- Component location: on the right longitudinal member
- Removing and Installing. Refer to Engine Sound Generator Actuator 1 -R257-, REMOVING AND INSTALLING, AUDI Q5 .
- Bracket
- For Engine Sound Generator Control Module -J943-
- Engine Sound Generator Control Module -J943-
- Removing and Installing. Refer to Engine Sound Generator Control Module -J943-, REMOVING AND INSTALLING, AUDI Q5 .
- Expanding Rivet
- Quantity: 2
- Not Installed
- Not Installed
