Brake Pad Wear Indicator Wire, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear wheel. Refer to WHEELS AND TIRES .

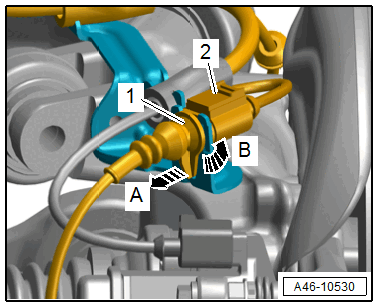

-- Disconnect the connector -2- from the brake pad wear indicator contact.
-- Release the connector -1- to the brake pad wear indicator contact from its bracket in direction of -arrow A- while turning it 90° at the same time -arrow B-. (varying installation positions)
-- Free up the wire by removing the protective cap -3- from the bleed screw and the clip -4-.
-- Carefully remove the contact -1- for the brake pad wear indicator using pliers while paying attention to the clip -2-.
