Overview - Brakes 1LC, 1LE And 1LF

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

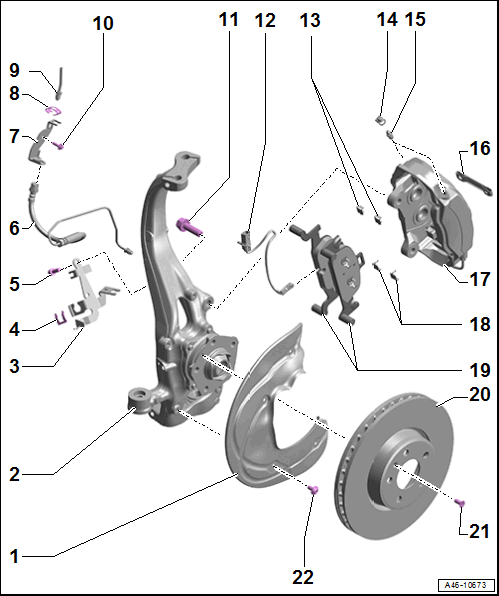

Fig 1: Exploded View Of Front Brakes (Brakes 1LC, 1LE and 1LF)

Courtesy of AUDI

Brake Shield
- Refer to BRAKE SHIELD, REMOVING AND INSTALLING
Wheel Bearing Housing
Bracket
- For brake hose and wire
Hose Bracket
- For brake hose
Bolt
- 20 Nm
Brake Line/Hose
- Brake line to brake caliper tightening specification: 14 Nm
- Replace if damaged
- Make sure the brake hose is routed correctly. Make sure the brake hose is not blocked, bent, twisted or rubbing against the vehicle.
- Make sure that tabs are properly seated in the grooves on the bracket.
Bracket
- For the brake line/hose
Spring
- Replace if damaged
Brake Line
- Brake line to brake hose tightening specification: 14 Nm
- Replace a damaged or bent brake line
- Do not change the bending shape.
Bolt
- 20 Nm
Bolt
- 200 Nm
Brake Pad Wear Indicator Wire
- Replace when replacing the pads
- For the left inner brake pad with the Left Front Brake Pad Wear Sensor -G34-
- Refer to BRAKE PAD WEAR INDICATOR WIRE, REMOVING AND INSTALLING
Anti-Friction Plate
- Replace when replacing the pads
- Refer to Fig 2
Protective Cap
Bleed Screw
- 18 Nm
- Refer to HYDRAULIC SYSTEM, BLEEDING
Spring Bracket
- Replace when replacing the pads
- Refer to Fig 4
Brake Caliper
- Allocation. Refer to the appropriate Electronic Parts Information.
- Refer to BRAKE CALIPER, REMOVING AND INSTALLING
- Refer to BRAKE CALIPER, REPLACING
- Servicing. Refer to BRAKE CALIPER PISTON, REMOVING AND INSTALLING, FOUR-PISTON BRAKE .
Anti-Friction Plate
- Replace when replacing the pads
- Refer to Fig 2
Brake Pads
- Always replace on both axles.
- Allocation. Refer to the appropriate Electronic Parts Information.
- Left inner brake pad with the Left Front Brake Pad Wear Sensor -G34-
- If the brake pad wear indicator wire is damaged, replace the brake pads
- Check the pad thickness. For the wear limit. Refer to BRAKE PADS, CHECKING THICKNESS
- Refer to BRAKE PADS, REMOVING AND INSTALLING, BRAKES 1LC, 1LE AND 1LF
- Refer to Fig 3
Brake Rotor
- Always replace on both axles.
- Allocation. Refer to the appropriate Electronic Parts Information.
- Refer to BRAKE ROTOR, CHECKING
- Wear limit specified on the brake rotor
- When replacing the brake rotors, also replace the brake pads.
- Refer to BRAKE ROTOR, REMOVING AND INSTALLING
Bolt
- 8 Nm
Bolt
- 10 Nm

Anti-Friction Plates Installation Position A

Fig 2: Anti-Friction Plates Installation Position -A-

Courtesy of AUDI

CAUTION:

Risk of malfunction due to missing anti-friction plates.

- Make sure all anti-friction plates are present and in their installation position before inserting the brake pads.

Insert all four anti-friction plates -A- into the brake pad contact surfaces as shown.
Anti-friction plate installation position: the small narrow tab faces the brake caliper.
Make sure the installation position is correct before installing the brake pads.

Brake Pad Installation Position, Brakes 1LC, 1LE, 1LF

Fig 3: Brake Pad Installation Position

Courtesy of AUDI

Inner brake pad with groove -arrow- for brake pad wear indicator sensor
Outer Brake Pad

-- Clip the brake pads with the springs into the brake caliper pistons.

Spring Bracket, Installing

Fig 4: Spring Bracket, Installing

Courtesy of AUDI

-- After inserting the brake pads -2-, slide the spring bracket -1- onto the brake pads through the eyes and let it engage into the mount.

The spring bracket must engage audibly and noticeably in the mount in the brake caliper.
