Brake Pad Wear Indicator Wire, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front wheel. Refer to WHEELS AND TIRES .

-- Disconnect the connector -2-.

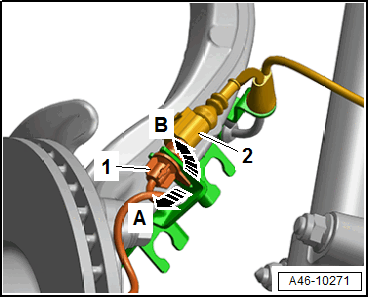

Fig 1: Brake Pad Wear Sensor -1-

Courtesy of AUDI

-- Release the tab in direction of -arrow A- and turn 90° -arrow B- at the same time. Then remove and free up the brake pad wear sensor -1- from the bracket.

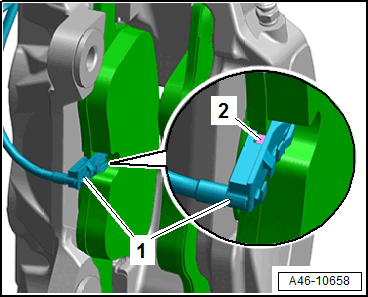

Vehicles with brakes 1LC, 1LE, 1LF:

Courtesy of AUDI

-- Remove the brake caliper. Refer to BRAKE CALIPER, REMOVING AND INSTALLING .

-- Remove the contact -1- for the brake pad wear indicator from the brake pad, while being careful of the clips -2-.

-- Free up the brake pad wear indicator wire, for this, unclip it at the brake caliper and the brake pad spring -arrow-.

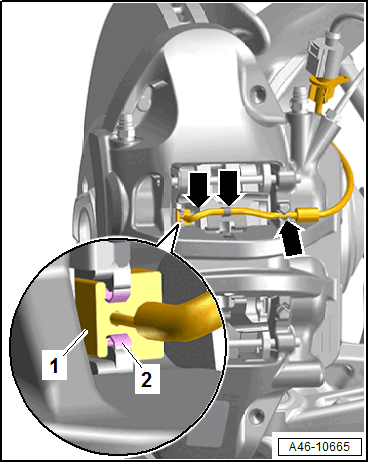

Vehicles with Brakes 1LG, 1LH, 1LK, 1LP:

Courtesy of AUDI

-- Free up the brake pad wear indicator wire, for this, unclip it at the brake caliper and the brake pad spring -arrow-.

-- Remove the contact -1- for the brake pad wear sensor from the brake pad, while being careful of the clips -2-.

Vehicles with brakes 1ZA, 1ZC, 1ZD, 1ZK, 1ZL, 1LI, 1LJ, 1LL:

Courtesy of AUDI

-- Free up the wire by opening the protective cap -3- and disengage the wire from the brake caliper -arrows-.

-- Remove the contact -1- for the brake pad wear indicator from the brake pad, while being careful of the clips -2-.
