Brake Pad Wear Indicator Wire, Removing And Installing: Installing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
TIP:
If the clips go missing, the brake pad wear indicator wire must be replaced.
-- Insert the brake pad wear indicator contact with the retainer until it engages in the brake pad.
-- Secure the brake pad wear indicator wire back into the same position.

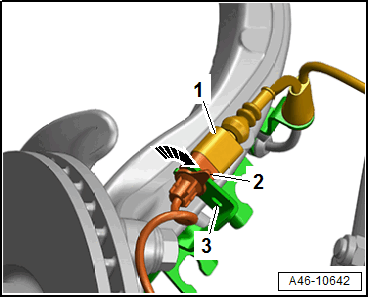

-- Bring the brake pad wear sensor into its installation position on the bracket and turn it in the direction of -arrow- until the tab -2- engages in the hole -3- on the bracket.
-- Connect the connector -1-.
-- Install the brake caliper. Refer to BRAKE CALIPER, REMOVING AND INSTALLING .
