Brake Caliper, Replacing, All Brakes Excluding 1LC, 1LE, 1LF: Installing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

-- Install the brake pads. Refer to BRAKE PADS, REMOVING AND INSTALLING .

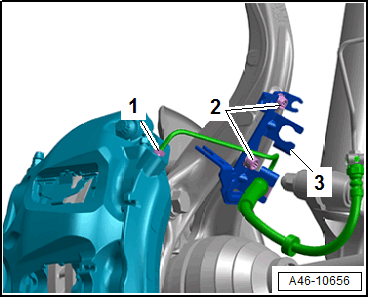

-- Move the bracket -3- with the brake hose into its installation position and tighten the union bolt -1- and bolts -2-.

Courtesy of AUDI

Make sure the brake hose is routed correctly.
Make sure the brake hose is not pinched, bent, twisted or rubbing against the vehicle.

-- Bring the brake pad wear sensor into its installation position on the bracket and turn it in the direction of -arrow- until the tab -2- engages in the hole -3- on the bracket.

Courtesy of AUDI

-- Connect the connector -1-.

-- Remove the Brake Pedal Actuator:V.A.G 1869/2 .

-- Only bleed the brakes on the wheel from which the brake caliper and the brake hose were loosened. Refer to HYDRAULIC SYSTEM, BLEEDING .

If the brake pedal still feels "soft", completely bleed the brakes. Refer to HYDRAULIC SYSTEM, BLEEDING .

-- Check brake fluid level, and fill if necessary.

CAUTION:

Faulty brakes increase the risk of an accident.

- Make sure the brakes are working correctly before driving the vehicle for the first time.

-- With the vehicle stationary, firmly press the brake pedal several times so that the brake pads in the operating condition properly sit in their respective position.
